TKScope DK Emulator Application Note

TKScope DK emulator in CCSv4 use guide. Describes how to install CCS interface driver and USB driver, create a simple test project, create an emulator connection target configuration file, debug the project, etc

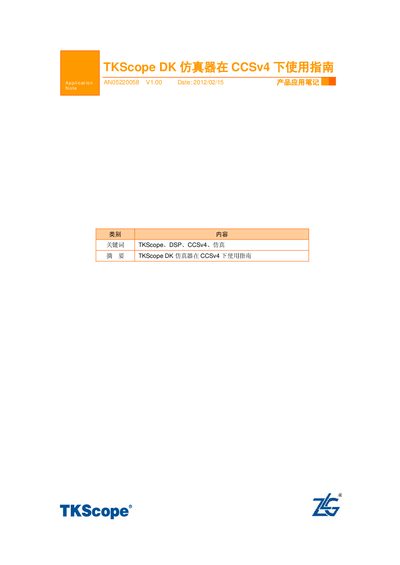

TKScope DK Emulator Application Note - cover page
Brand
TKScopr
Category
Other Electronics
Document type
Application Note
Language
Chinese
Pages
18
File format
PDF
File size
2.7 MB
Published
13 March, 2012
Updated
30 September, 2023
MD5 checksum
BA276A2317D675889816E06B99DB0EF7
PDF
TKScope DK Emulator Application Note PDF

About this manual

This application note provides step‑by‑step instructions for using the TKScope DK emulator with Texas Instruments' Code Composer Studio v4. It covers driver installation, creation of a test project, and configuration of the target connection file.

The document also explains how to select the appropriate emulator and target device, such as the TMS320F28035 Piccolo MCU, and includes a brief summary of the workflow. This manual is written in Chinese.

What's inside

  • Background
  • Interface driver installation
  • Simple test project creation
  • Create emulator connection target configuration file
  • Debug project
  • Summary

Specifications

Supported emulator modelTKScopeDKXDS560 USB Emulator
Supported target chipTMS320F28035

Frequently asked questions

How do I install the CCS interface driver for the TKScope DK emulator?

Download the driver named "TKScope DK CCS driver" (supports CCS4.0) from the provided URL and install it into the Texas Instruments folder as "SetupTKScopeDK_CCS4".

Which USB driver is required for the DK series emulators?

Install the TKScope K9 Driver located under the Texas Instruments CCS v4 common directory; it works for DK5, DK9, and DK10 emulators.
