The PVX100 series photovoltaic array intelligent lightning protection busbar box has the features of meeting the requirements for outdoor installation, fully sealed design, dustproof, waterproof, antistatic, and suitable for harsh environments and low-temperature areas. It can simultaneously connect 8-24 channels of solar cell strings, with a maximum current of 15A per channel, and a maximum open circuit voltage of 1000V for the connected photovoltaic strings. It is equipped with photovoltaic-specific high-voltage lightning arrester, four-pole circuit breaker, intelligent DC acquisition, monitoring and analysis of solar cell string performance, input signal acquisition, output signal, operation data recording, remote communication, and other functions.
The PVX100 series is a fully sealed, dust‑, water‑, static‑ and temperature‑protected combiner box designed for outdoor photovoltaic installations. It integrates lightning protection, intelligent DC monitoring, and communication functions, allowing 8 to 24 PV strings (up to 15 A per string) to be safely combined before feeding an inverter.

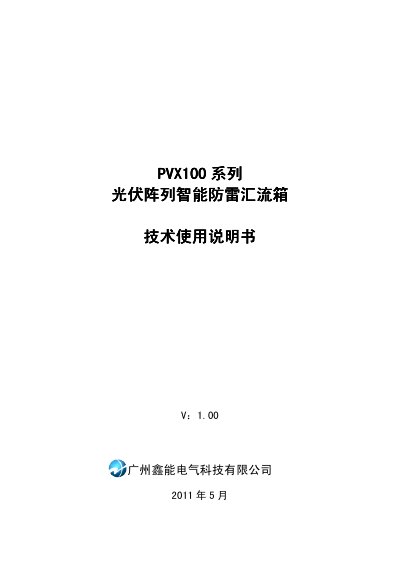

The manual covers product features, model naming, mechanical and environmental specifications, electrical performance, anti‑interference tests, safety guidelines, installation steps, wiring diagrams, communication options (RS‑485, Ethernet, optional power‑line and wireless), and detailed technical data such as dimensions, voltage ranges, and IP rating. This manual is written in Chinese.
| Mechanical dimensions | 700 mm × 600 mm × 320 mm |
|---|---|
| Operating temperature range | -40 °C to +55 °C |
| Maximum input voltage (open‑circuit) | 1000 V DC |
| Maximum current per string | 15 A |
| Fuse voltage rating | ≥ DC 1000 V |
| Input voltage range (array) | 100 V – 900 V DC |
| Maximum parallel input strings | 8 / 12 / 16 / 24 (model dependent) |
| IP protection rating | IP65 |
| Communication interfaces | RS‑485, Ethernet 100 M (RJ45), optional power‑line and wireless |
The box can accept up to 24 strings, with model options for 8, 12, 16 or 24 parallel inputs.
It is rated for operation from –40 °C up to +55 °C.
The device includes one RS‑485 port, one 100 M Ethernet (RJ45) port, and optional power‑line and wireless modules.
It can handle an open‑circuit voltage of up to 1000 V DC.
