The TBG8150 explosion-proof platform lamp is a product produced by Wenzhou Tianlangxing Lighting Co., Ltd. The product uses high-pressure sodium lamps and metal halide lamps as light sources, which have high luminous flux and long service life. The lamp has a compact appearance and flexible installation methods, which can meet various installation needs of users. The product complies with national standards and has explosion-proof performance.
The TBG8150 is an explosion‑proof platform light designed for hazardous environments. It complies with GB3836.1‑2000, GB3836.2‑2000 and GB12476.1‑2000 standards, offering high illumination efficiency and simple installation.

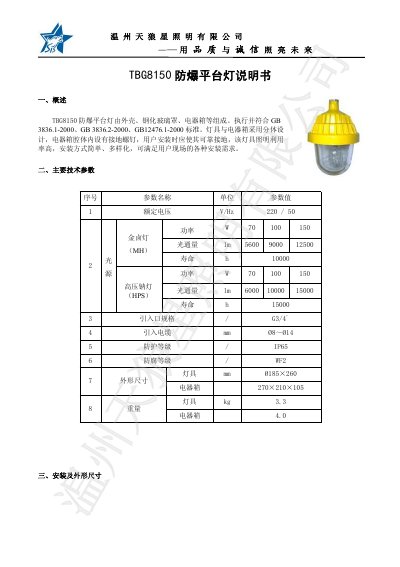

The document provides the main technical parameters, such as voltage, power, luminous flux and lifetime, as well as detailed installation instructions and mechanical dimensions of the lamp and its control box. This manual is written in Chinese.
| Rated Voltage | 220 V / 50 Hz |
|---|---|
| Power Options | 70 W, 100 W, 150 W |
| Luminous Flux (LED) | 5600–12500 lm |
| LED Lifetime | 10 000 h |
| Luminous Flux (HPS) | 6000–15000 lm |
| HPS Lifetime | 15 000 h |
| Ingress Protection | IP65 |
| Lamp Weight | 3.3 kg |
| Control Box Dimensions | 270 × 210 × 105 mm |
The lamp is rated at 220 V, 50 Hz.
It has an IP65 protection rating.
The LED version provides between 5600 lm and 12500 lm.
The lamp weighs approximately 3.3 kg.
