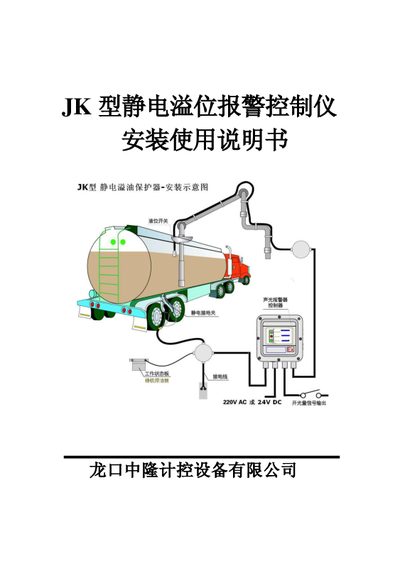

The installation and operation manual of JK type static overflow alarm controller is suitable for flammable and explosive oil depots and gas stations, as well as liquid benzene, hydrocarbon sealed vehicles and other chemical products packaging systems.
The JK static electricity overflow alarm controller is designed for oil‑storage, fueling stations and chemical filling systems to ensure proper grounding and prevent liquid overflow. The device features explosion‑proof construction, sound‑light alarms, and relay outputs for integration with third‑party control systems.
The guide covers preparation before use, detailed installation steps, wiring diagrams, system maintenance, fault analysis, technical specifications, spare‑part lists and ordering information. It also includes safety precautions and explosion‑proof certification details. This manual is written in Chinese.
| Static grounding resistance | ≤ 62Ω |
|---|---|
| Overflow response time | 1–2 seconds |
| Alarm method | Sound and light |
| Static grounding signal output | 30V×3A DC; 125V×3A AC |
| Overflow alarm signal output | 30V×3A DC; 125V×3A AC |
| Combined signal output | 30V×3A DC; 125V×3A AC |
| Power supply input | 220VAC±10%, 50Hz±2%, <4VA |
| Internal DC power | 12VDC <250mA |
| MTBF | >8000 hours |
| Operating temperature range | -20~+70°C |
| Operating humidity range | 5~90% (25°C) |
| Explosion‑proof rating | iaⅡCT6, Zone 0 |
| Connector size | 1/2 inch pipe thread |
| Dimensions (L×W×H) | 240mm×180mm×86mm |
| Net weight | 8 kg |
The static grounding resistance must be less than or equal to 62 Ω.
The overflow response time is between 1 and 2 seconds.
After power‑on, the unit performs a self‑test, lighting the power, grounding and overflow indicator lights and sounding the buzzer for 1 second before entering normal operation.
