This is a digital multimeter that can measure AC current, DC current, voltage, resistance and frequency. It has a clamp sensor that can measure 60A MODEL 2000/100A MODEL 2001 AC/DC current. It adopts a probe-type clamp sensor that is convenient for measuring in narrow spaces or in areas with dense wires.

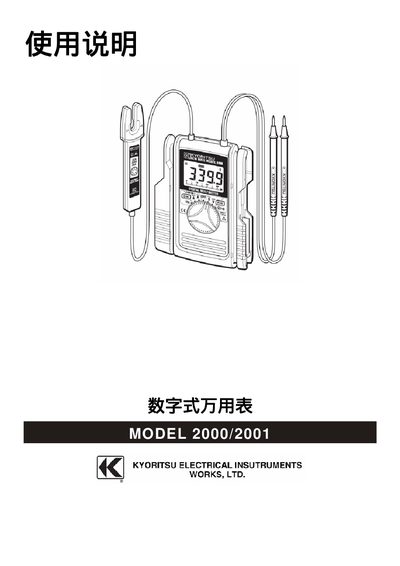

This manual provides the operating instructions, safety warnings, and technical specifications for the Kyoritsu 2000/2001 digital multimeter. It includes details on measurement ranges, accuracy, power supply, and environmental limits, as well as guidance for proper use and maintenance.
The document follows IEC 61010 safety standards and lists the physical dimensions, battery information, and LCD display functions. Users can reference the sections on current, voltage, and frequency measurement to ensure correct setup and accurate readings.
| Current measurement range (model 2000) | 0–60 A, ±2 % accuracy |
|---|---|
| Current measurement range (model 2001) | 0–100 A, ±2 % accuracy |
| Voltage measurement range | 0–600 V, ±1.5 % accuracy |
| Frequency response | 0–3.399 kHz (basic), 3.4 kHz–33.99 kHz (extended) |
| Operating temperature range | -20 °C to 60 °C |
| Physical dimensions (model 2000) | 128 mm × 87 mm × 24 mm |
The device complies with IEC 61010‑1 CAT II 300 V and IEC 61010‑2‑31 safety standards.
The model 2000 measures 128 mm long, 87 mm wide, and 24 mm deep.
The model 2001 provides a current range of 0–100 A with an accuracy of ±2 %.
