FL2101F digital illuminance meter is a high-precision illuminance measurement instrument integrating light, electricity and modern digital processing technology. It has the characteristics of wide measurement range, high accuracy and fast response speed.
The FL2101F is a high‑precision digital light meter designed for fast and reliable illumination measurement. It features a photodiode sensor with a filter, a 3% accuracy LCD display, and a sampling rate of 3–5 Hz, making it suitable for a wide range of lighting environments.

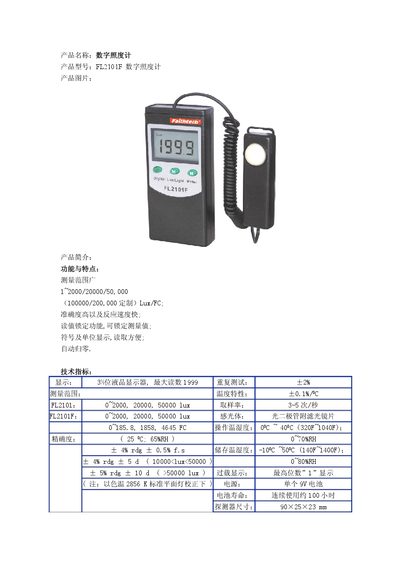

The device measures from 0 lux up to 50 000 lux, operates between 0 °C and 40 °C with 65 % RH, and can be stored from –10 °C to 50 °C. It is powered by a 9 V battery that lasts about 100 hours, and the compact unit (128 × 60 × 23 mm, 300 g) includes accessories such as a user guide and a portable case. This manual is written in Chinese.
| Measurement range | 0–2000, 20000, 50000 lux |
|---|---|
| Accuracy | ±3 % |
| Sampling rate | 3–5 Hz |
| Detector dimensions | 90 × 25 × 23 mm |
| Main unit dimensions | 128 × 60 × 23 mm |
| Weight | 300 g |
It can measure illumination from 0 lux up to 50 000 lux, covering ranges of 0–2000, 20000, and 50000 lux.
The device provides a measurement accuracy of about ±3 %.
