The AV-IR8 infrared controller is a powerful infrared programming tool that can learn the codes of the infrared remote controls of the controlled devices, and then program and burn the infrared code files to the main control unit or interface unit, so that the main control unit or interface unit can directly control the infrared device to achieve automatic control.
The AV-IR8 is an infrared control unit in the Plexus AV series, providing up to eight independent channels for remote operation of devices. It operates from a DC12 V supply, consumes about 1 W, and stores configuration data in 64 KB of memory.

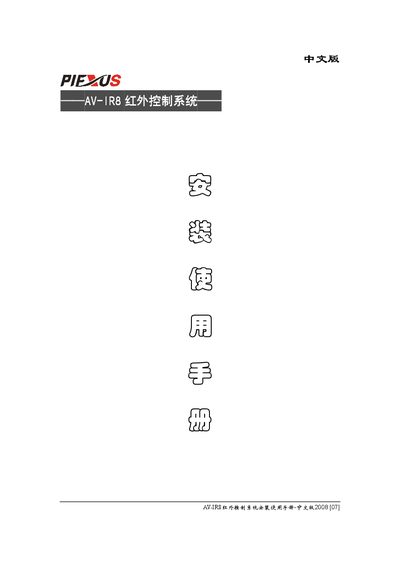

The manual describes the front‑panel LEDs (power, recording, receive, channel status), the rear‑panel RS‑232 interface (9600‑N‑8‑1) with an 8‑pin Mini‑Phoenix connector, and the command protocol used to control each channel. Wiring diagrams and example command strings are provided for system integration. This manual is written in Chinese.
| Power supply | DC12V / 1.0A |
|---|---|
| Communication interface | RS-232, 9600-N-8-1 |
| Output connector | 8‑pin Mini Phoenix |
| Number of channels | 8 independent infrared channels |
| Dimensions (L×W×H) | 200 mm × 145 mm × 50 mm |
It uses an RS‑232 interface with settings 9600‑N‑8‑1.
The unit provides eight independent infrared control channels.
It requires a DC12 V supply at 1.0 A and consumes about 1 W of power.
