CMC10G communication controller is used to realize PLC communication with Yamatake controller and supports RS-232C and RS-485 protocols
The CMC10G001A000 communication controller enables PLCs to communicate with Shanwu controllers without programming. Settings are configured via an AP editor, and optional accessories such as a battery, RS‑232C cable, and AP editor are available.

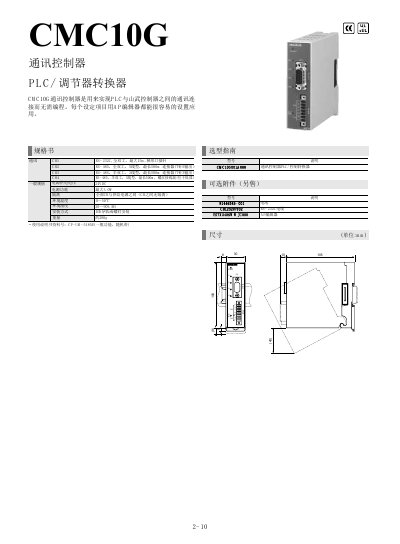

Technical specifications include RS‑232C and multiple RS‑485 channels with defined duplex modes and cable lengths, a 24 VDC power supply (max 3.0 W), DIN‑rail or screw mounting, and operation within 0‑50 °C and 30‑90 %RH humidity. This manual is written in Chinese.
| RS‑232C (CH1) mode | Full duplex, max 15 m |
|---|---|
| RS‑485 (CH2) mode | Full duplex, 5‑wire, max 500 m |
| RS‑485 (CH3) mode | Half duplex, 3‑wire, max 500 m |
| RS‑485 (CH4) mode | Half duplex, 3‑wire, max 500 m, screw terminal |
| Power supply voltage | 24 VDC |
| Maximum power consumption | 3.0 W |
| Operating temperature range | 0 °C – 50 °C |
| Operating humidity range | 30 % – 90 % RH |
| Mounting method | DIN‑rail or screw |
| Weight | ≈200 g |
The device operates from a 24 VDC supply and its maximum power consumption is 3.0 W.
It can be installed on a DIN‑rail or secured with screws.
