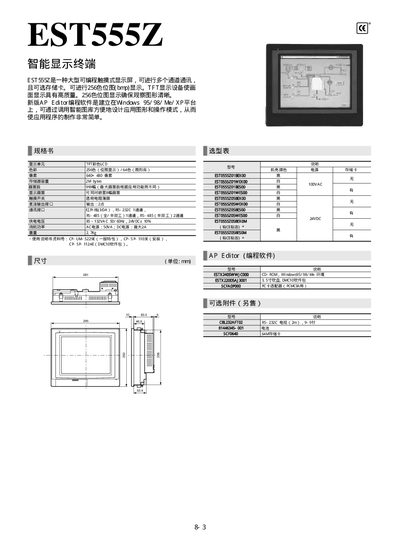

EST555Z Intelligent Display Terminal is a large programmable touch screen that can communicate on multiple channels and can optionally select a storage card. It can display 256-color bitmaps (bmps). TFT display devices provide high-quality image display. 256-color bitmap display ensures clear observation of graphics.
The EST555Z is a large programmable touch‑screen display terminal that supports multiple communication channels and optional storage cards. It offers high‑quality TFT display with 256‑color bitmap capability and a 64‑color graphics library.
The manual also describes the AP Editor programming software, which runs on Windows 95/98/Me/XP and allows easy creation of application graphics and operation modes. Optional accessories such as RS‑232C cables, batteries, and PCMCIA adapters are listed. This manual is written in Chinese.
| Color Depth | 256 colors (bitmap) / 64 colors (graphics library) |
|---|---|
| Resolution | 640 x 480 pixels |
| Memory Capacity | 2 Mbytes |
| Maximum Screens | 999 frames (max varies by application) |
| Touch Switch Type | Transparent resistive film |
| Power Supply | 85~132 VAC 50/60 Hz, 24 VDC |
The terminal supports 256‑color bitmap display and a 64‑color graphics library.
The display resolution is 640 × 480 pixels.
The device includes 2 Mbytes of storage capacity.
