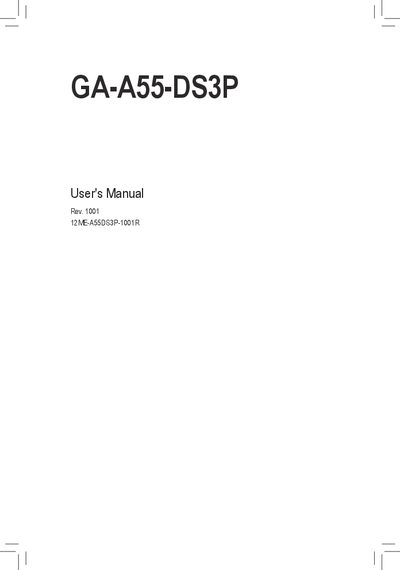

This manual describes the installation of hardware, BIOS settings and driver installation for GA-A55-DS3P motherboard.
This manual covers the GA‑A55‑DS3P motherboard, detailing hardware installation, BIOS configuration, driver setup, and unique features such as dual‑channel memory and AMD Dual Graphics. It also includes a block diagram, layout illustration, and an appendix with technical references.
The document lists the box contents, safety compliance declarations, and contact information for global support. It serves both end‑users and technicians needing detailed guidance on configuring and maintaining the motherboard.
| Memory Type | DDR3 1866/1600/1333/1066 MHz |
|---|---|
| SATA Ports | 6 SATA 3Gb/s |
| USB Ports | 14 USB 2.0/1.1 |
| PCI Express x16 Slots | 1 |
| PCI Express x4 Slots | 1 |
| PCI Express x1 Slots | 1 |
| APU Clock | 100 MHz |
| Display Clock | 100 MHz |
The revision number is printed on the motherboard as "REV: X.X", for example "REV: 1.0".
