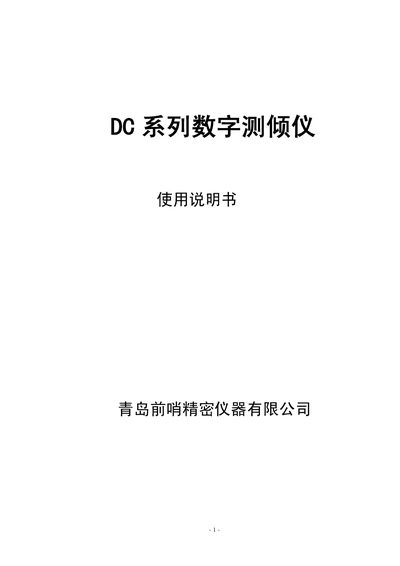

This document is the user manual for the DC series digital inclinometer produced by Qingdao Qianshao Precision Instrument Co., Ltd. It introduces the functions and features of the product.
This manual introduces the DC series digital measured pour instrument, describing its high‑precision measurement functions, LCD display options, and selectable units. It explains the instrument’s purpose for precise tilt and pour measurements in industrial settings.
The guide covers installation steps, power‑up procedures, data storage limits, interface connections, and safety precautions. Technical specifications such as resolution, accuracy, power source, and dimensions are listed, and contact information for support is provided. This manual is written in Chinese.
| Resolution (angle) | 0.00005 rad |
|---|---|
| Resolution (slope) | 0.05 mm/m |
| Resolution (angle) for DC30 | 0.0001 rad |
| Dimensions | 150 mm × 110 mm × 37 mm |
It must be powered for at least three hours before the first measurement.
The instrument can store up to 300 measurement data entries.
Data can be output via an RS232 serial interface.
