SID600F RFID Card tester is a compact and portable tester that can test LF, HF tags and cards, and provide accurate technical parameters.
The SID600F RFID Card Tester measures low‑frequency and high‑frequency RFID tags, providing signal generation, directional coupler measurement, waveform display, analysis and data storage. It is compact, low‑power, and designed for consistent batch performance verification.

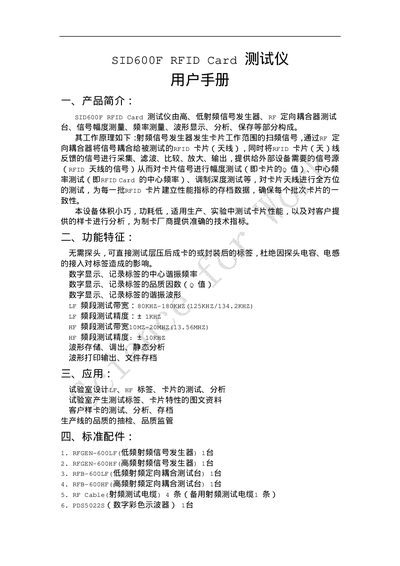

The manual describes functional features, required accessories, installation steps, operation procedures, and fault handling. It also lists recommended accessories such as RFGEN‑600 series signal generators, RFB‑600 directional couplers, RF cables, and a digital oscilloscope. This manual is written in Chinese.
| Low‑frequency measurement range | 125 kHz – 134.2 kHz |
|---|---|
| High‑frequency measurement range | 13.56 MHz |
| Frequency accuracy (high‑freq) | ±1 kHz |
The recommended accessories are RFGEN‑600rr or RFGEN‑600HF signal generators, RFB‑600rr or RFB‑600HF directional couplers, RF cables, and a digital oscilloscope (e.g., Pps50228).
Place the directional coupler on a non‑metallic surface, ensuring at least 10 mm clearance from any metal above or below to maintain measurement accuracy.
