BXS3800 Intelligent Synchronous Control Instrument is a multi-unit output synchronous control device produced by Bosen Automation. It has the characteristics of powerful functions, flexible configuration, high precision, high reliability, and convenient use and maintenance.
The BXS3800 intelligent sync controller, produced by Boxin Automation, is a fully digital multi‑unit output synchronization device for industrial automation. It supports 4, 8 or 15 synchronized units and offers high‑precision closed‑loop control, various control modes, and easy maintenance.

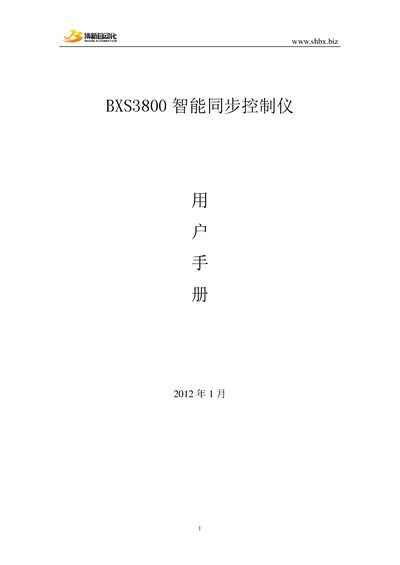

This manual provides detailed product information, key technical specifications, step‑by‑step operation instructions, installation and wiring guidelines, functional principles, parameter settings, fault handling procedures, and technical support contacts. This manual is written in Chinese.
| Power Input AC Voltage | 90–264 VAC, 50–60 Hz |
|---|---|
| Power Input DC Voltage | 120–370 VDC |
| DC Output 12 V | 12 V ± 7 % , 100 mA |
| DC Output 10 V | 10 V ± 5 % , 50 mA |
| Unit Input Voltage Range | 0–10 VDC, ±0.01 V |
| Unit Input Impedance | 40 kΩ |
| Unit Output Voltage Range | 0–10 VDC, ±0.01 V |
| Unit Output Impedance | 1 MΩ |
| Operating Temperature | -10 °C to +50 °C |
| Operating Humidity | < 95 % RH, no condensation |
| Maximum Vibration | < 5.9 m/s² (0.6 g) |
| Maximum Altitude | < 1000 m |
The controller operates from -10 °C to +50 °C.
It can synchronize 4, 8, or 15 units.
The controller accepts 90–264 VAC at 50–60 Hz or 120–370 VDC.
