TCC-CK203 series digital display switch cabinet intelligent control device is a intelligent control device used in 3-35 kV indoor switch cabinet. It has functions such as circuit breaker on/off state indicator, energy storage indicator, grounding switch indicator, trolley position indicator, intelligent language error prompt, high voltage carrying indication, cabinet lighting and RS485 communication interface.
The TCC CK203 series is an intelligent control unit for digital switch cabinets. It integrates functions such as circuit breaker status indication, grounding status, manual position indication, high‑voltage alarm, internal lighting, and RS485 communication, allowing it to replace multiple separate devices.

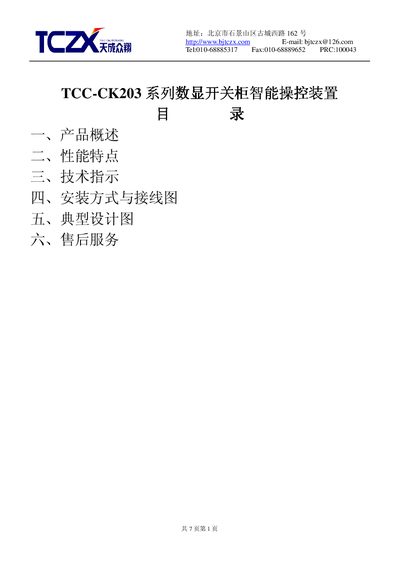

The manual covers performance features, technical parameters, installation methods (including dimensions 230 mm × 178 mm × 69 mm), wiring diagrams, RS485 interface usage, temperature and humidity measurement and control, safety alerts, and warranty information. It also provides typical setting examples and troubleshooting guidance. This manual is written in Japanese.
| Operating Voltage | AC/DC 220 V ±10 % 50/60 Hz |
|---|---|
| Operating Temperature Range | -20 °C to 70 °C |
| Relative Humidity Range | 0 % to 95 % RH |
| Temperature Measurement Accuracy | ±1 °C |
| Humidity Measurement Accuracy | ±3 % RH |
| External Terminal Voltage Rating | AC 2000 V |
| Dimensions (W × H × D) | 230 mm × 178 mm × 69 mm |
It requires an AC or DC supply of 220 V with a tolerance of ±10 % at 50/60 Hz.
The device can measure temperatures from –20 °C to 99 °C, with an accuracy of ±1 °C.
Yes, the unit includes an RS485 interface for data transmission and control.
The cabinet measures 230 mm × 178 mm × 69 mm (width × height × depth).
