The SSA3030 spectrum analyzer is a portable spectrum analyzer designed with all-digital intermediate frequency technology. It has excellent linearity and unprecedented accuracy, with an ultra-low 5Hz bandwidth resolution, up to 5 tracks of trace measurement display, comprehensive measurement functions, diversified communication interfaces and 8.4-inch LED ultra-large screen display. While enhancing the performance of each product, it also has rich humanized settings.
The SSA3030 spectrum analyzer is a fully digital IF design instrument offering high linearity, low noise, and a 5 Hz resolution bandwidth. It supports up to five simultaneous trace displays, multi‑window zoom, and a range of measurement functions such as channel power, ACP, OBW, and spectrograms.

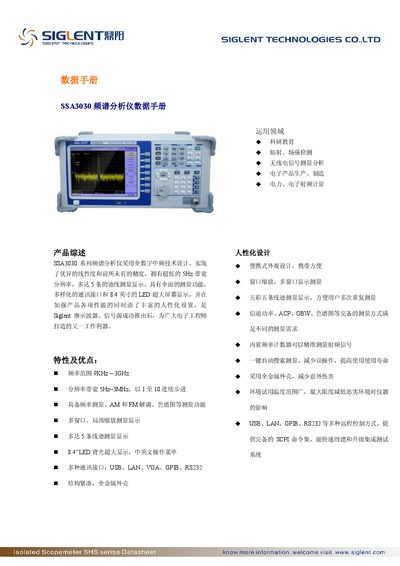

The handbook details technical specifications, including frequency range, resolution bandwidth, communication interfaces (USB, LAN, VGA, GPIB, RS232), and physical dimensions. Ordering information, warranty terms, and contact details for the manufacturer and distributor are also provided. This manual is written in Chinese.
| Frequency range | 9 kHz – 3 GHz |
|---|---|
| Resolution bandwidth | 5 Hz – 3 MHz |
| Number of trace lines | Up to 5 |
| Input power range | 0 dBm – +10 dBm |
| Maximum power consumption | 60 W |
| Weight | 7.6 kg |
| Dimensions (W×H×D) | 390 mm × 182 mm × 230 mm |
The SSA3030 covers a frequency range from 9 kHz to 3 GHz.
The instrument can display up to five trace lines at the same time.
The maximum power consumption is 60 W.
