RIGOL DSA1000 Spectrum Analyzer User Manual

This is a user manual for a spectrum analyzer product, which details the product's usage methods, safety precautions, etc.

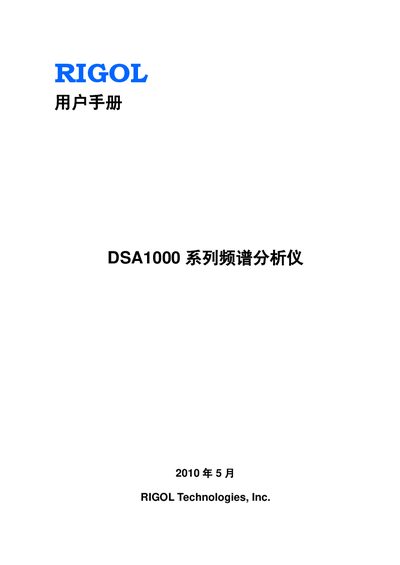

RIGOL DSA1000 Spectrum Analyzer User Manual - cover page
Brand
RICOL
Category
Other Electronics
Document type
User Manual
Language
Chinese
Pages
269
File format
PDF
File size
4.4 MB
Published
13 March, 2012
Updated
30 September, 2023
MD5 checksum
558ED4FEC4944BD0BB3FDD9C1115E390
PDF
RIGOL DSA1000 Spectrum Analyzer User Manual PDF

About this manual

This manual introduces the DSA1000 series portable spectrum analyzer, highlighting its compact size, 8.5‑inch TFT color display, and optional USB, LAN, and GPIB interfaces for remote control. It covers basic safety precautions, front‑panel functions, measurement examples, and troubleshooting procedures to help users operate the instrument safely and effectively.

The document also details performance specifications such as frequency range, noise level, phase noise, and power handling limits, and provides guidance on battery use, grounding, and environmental considerations. Appendices list menu mappings, calibration functions, and accessory information. This manual is written in Chinese.

What's inside

  • Safety Overview
  • Quick Start
  • Front Panel Function Reference
  • Measurement Example
  • Remote Control
  • Troubleshooting
  • Performance Specifications
  • Menu Mapping
  • Appendix

Specifications

Frequency range9 kHz to 2 GHz or 3 GHz
Display average noise level (DANL)-138 dBm
Phase noise (typical)-88 dBc/Hz at 10 kHz offset
Full‑scale amplitude accuracy< 1.5 dB
Battery life (optional)3 hours
Weight (without battery)6.2 kg
Display size8.5‑inch TFT color LCD

Frequently asked questions

What is the maximum input signal level for the RF input?

The DC voltage component must not exceed 50 V DC and the RF signal component must not exceed a continuous power of 30 dBm (1 W).
