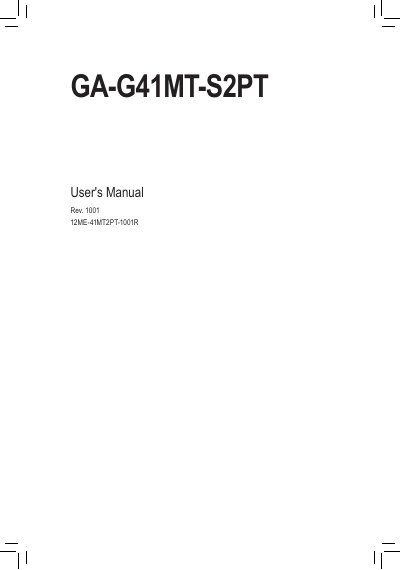

This document is the user manual for the GA-G41MT-S2PT motherboard, which introduces the hardware installation, product specifications, installation of CPU and memory, installation of expansion cards, and back panel connectors and internal connectors.
This manual introduces the GA‑G41MT‑S2PT motherboard and gives safety precautions, hardware installation steps for the CPU, memory, expansion cards, and back‑panel connectors, as well as detailed wiring diagrams.
It also covers BIOS configuration, supported CPUs, memory modules, onboard graphics, audio, LAN, storage interfaces, USB ports, power connectors, and includes full product specifications and troubleshooting guidance.
| Chipset (North Bridge) | Intel G41 Express |
|---|---|
| South Bridge | Intel ICH7 |
| Memory Slots | 2 x DDR3 DIMM, up to 8 GB |
| Supported Memory Speed | DDR3 1333 (O.C.) / 1066 / 800 MHz |
| Onboard Graphics | 1 x D‑Sub port |
| Audio Codec | Realtek ALC887 / VIA VT1708, 2/4/5.1/7.1‑channel |
| LAN | Realtek RTL8111E 10/100/1000 Mbit |
| USB Ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 internal) |
| Power Connectors | 1 x 24‑pin ATX main, 1 x 4‑pin ATX 12 V |
| Form Factor | Micro ATX, 24.4 cm × 19.4 cm |
The revision number is printed on the board as "REV: X.X" (e.g., "REV: 1.0").
The board provides up to eight USB 2.0/1.1 ports – four on the rear panel and four via internal headers.
It supports Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium, and Celeron processors in the LGA775 package.
The board needs a 24‑pin ATX main power connector and a 4‑pin ATX 12 V connector.
