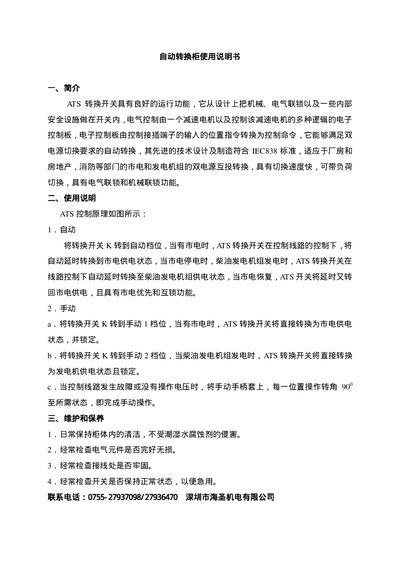

This manual introduces the use of the ATS transfer switch, including automatic and manual operation modes.
The ATS automatic transfer switch integrates mechanical and electrical interlocks with an electronic control board that converts input commands into control actions, meeting IEC838 standards for dual‑source power switching in factories, real‑estate, fire‑protection and other facilities. It supports fast switching, load carrying capability, and both electrical and mechanical interlock functions.
The manual describes automatic operation, where the switch defaults to utility power and automatically transfers to generator power on a power loss, and manual operation, where the operator can select utility or generator supply directly. Maintenance guidance includes keeping the cabinet clean, checking electrical components, tightening connections, and ensuring the switch remains functional for emergency use. Contact information for Haisheng is provided for support. This manual is written in Chinese.
| Compliance | IEC838 |
|---|---|
| Switching Speed | Fast |
| Load Capability | Can carry load during switching |
| Interlock Functions | Electrical and mechanical interlock |
