TY150 series switch cabinet intelligent control device is a device widely used in various high voltage switch cabinets in the power industry. It has the advantages of small panel volume and reasonable layout, which greatly simplifies the panel structure design of the switch cabinet, beautifies the panel layout of the switch cabinet, and improves the indication function and safety performance of the switch state.
The TY150 series intelligent control unit is designed for high‑voltage switch cabinets in the power industry. It integrates LCD display, voice error‑prevention prompts, dynamic diagrams, and status indicators for breakers, grounding switches, and energy storage, while also offering heating, de‑humidifying, temperature, and humidity control.

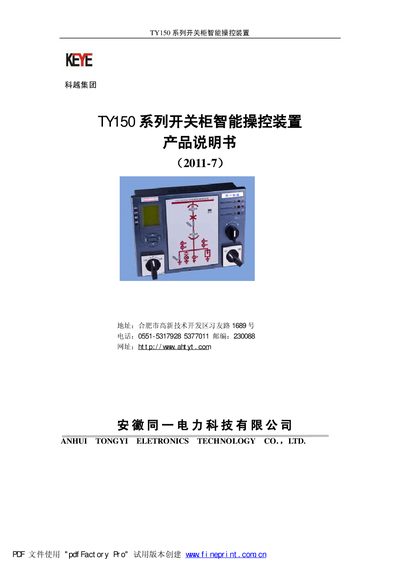

The device features RS485 communication, human‑body sensing for automatic back‑light and interior lighting control, optional infrared temperature measurement, and a multi‑function meter. It supports both automatic and manual modes, with detailed alarm and safety functions to prevent incorrect operation. This manual is written in Chinese.
| Control Output | AC 220 V 3 A normally open, dry contact |
|---|---|
| Alarm Output | AC 220 V 3 A normally open, dry contact |
| Insulation Strength | ≥100 MΩ between live parts and ground |
The unit gives a voice prompt such as “please separate the breaker” and lights the breaker’s red indicator to warn the operator.
