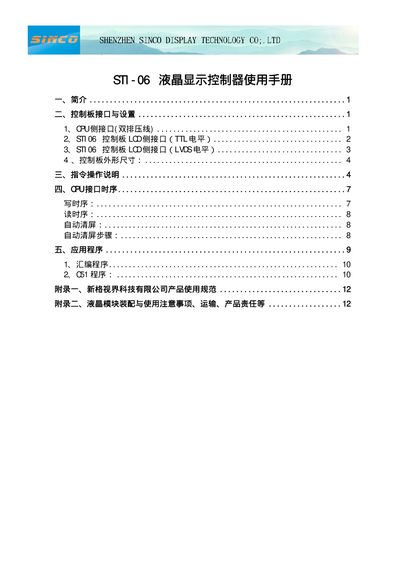

STI-06 liquid crystal display controller user manual, introduces the function characteristics, interface definition, instruction operation instructions, etc.
The Sinco STI-06 LCD controller manual provides an overview of the device, its supported LCD resolutions, voltage levels, and memory configuration. It describes the CPU‑side and LCD‑side interfaces, pin functions, and mechanical dimensions of the control board.
The document also includes detailed register descriptions, timing diagrams, and example assembly and C programs for screen clearing, point‑write, multi‑point and 8‑point write modes. Appendices give product usage guidelines and handling precautions. This manual is written in Chinese.
| Supported LCD resolutions (STI06V) | 640×480, 256 colors, 2 pages of video RAM |
|---|---|
| Supported LCD resolutions (STI06DH) | 800×480, 256 colors, 2 pages of video RAM |
| Supported LCD resolutions (STI06X) | 1024×768, 256 colors, 1 page of video RAM |
