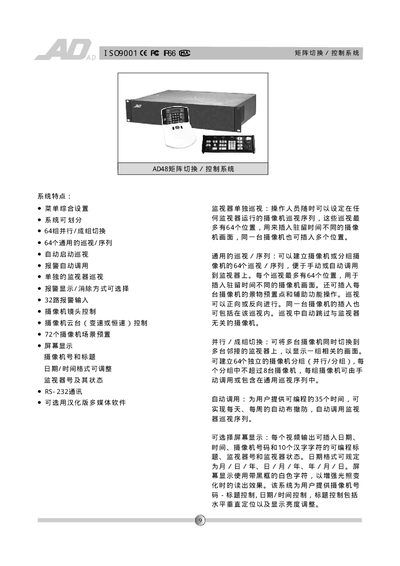

AD48 matrix switching / control system is a video switching system with multiple functions, which can realize multiple screen switching, preset point switching, alarm linkage and cruise
The AD48 matrix switch and control system provides 64‑group parallel switching, 64‑camera patrol sequences, and extensive alarm management. It supports RS‑232 communication, on‑site camera control, and optional graphical user interface software for Windows platforms.
The manual details system configuration, video input/output connections, power requirements, installation dimensions, and various alarm display and clearing methods, enabling users to set up and operate the system efficiently. This manual is written in Chinese.
| Switching time | <16 ms |
|---|---|
| Video inputs | 48 BNC connectors |
| Power consumption | ≈15 W |
| Dimensions | 89 × 332 × 482 mm |
| Weight | ≈4.5 kg |
| Bandwidth | 15 MHz |
| Frequency response | 10 MHz, +1.0 dB |
| Signal‑to‑noise ratio | -55 dB |
| RS‑232 data rates | 600–9600 bps |
The matrix switching time is less than 16 milliseconds.
