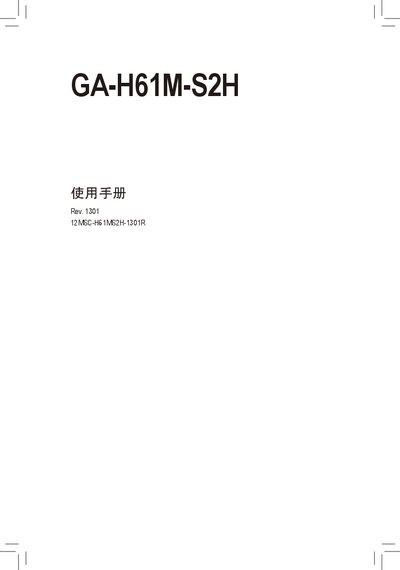

GA-H61M-S2H user manual, introduces product specifications, hardware installation, BIOS program settings, driver installation and other information
This manual provides step‑by‑step instructions for installing the GA‑H61M‑S2H motherboard, including CPU, memory, and expansion cards. It also details safety precautions, anti‑static handling, and connector descriptions to help users avoid damage during assembly.
The document includes a comprehensive BIOS configuration guide, driver installation procedures, and a full list of hardware specifications such as supported processors, memory types, storage interfaces, and integrated audio and networking features. Warranty and service information are provided at the end of the manual. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory speed | DDR3 1333/1066/800 MHz |
| USB ports | 8 USB 2.0/1.1 ports (4 rear, 4 via headers) |
| LAN controller | Atheros GbE (10/100/1000 Mbit) |
It has two DDR3 DIMM slots, supporting up to 16 GB of memory.
An Atheros GbE LAN chip providing 10/100/1000 Mbit Ethernet.
The board provides a D‑Sub, a DVI‑D, and an HDMI connector.
It uses a Realtek ALC889 codec supporting high‑definition audio.
