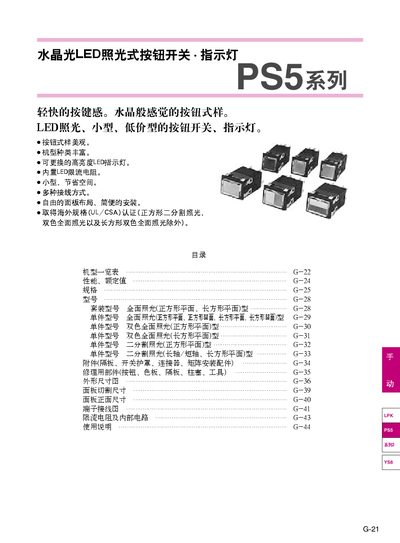

This document describes the features and characteristics of YS8 LPK PS5 Series 2 G-21 PS5 Series crystal light LED illuminated buttons switches and indicators, including beautiful button style, rich variety of models, replaceable high-brightness LED indicators, etc.
The document describes the PS5 series crystal‑light LED illuminated push‑button switches, covering their design, available lighting modes, and optional panel layouts. It includes details on the LED indicator types, wiring options, and compliance with overseas standards such as UL and ZCSA.
Installation, mounting, and connector information are provided, along with safety guidelines, environmental limits, and maintenance procedures. The manual also lists part numbers for different lighting configurations and accessories. This manual is written in Chinese.
| Maximum operating life | ≥ 1 000 000 cycles |
|---|---|
| Operating temperature range | -20 °C to 40 °C |
| Maximum humidity | ≤ 85 % RH |
| Vibration resistance | 1.5 mm, 10‑55 Hz |
| Shock resistance | 200 m/g |
| Contact rating (AC) | 125 V |
The switch is rated for at least one million (1 000 000) cycles.
Install the switch in temperatures between –20 °C and 40 °C and humidity not exceeding 85 % RH.
The switch can be configured with either 1 × SPDT or 2 × SPDT contacts.
