This document introduces the safety precautions and instructions for using the gas pressure switch C6097A, including the features and characteristics of the product.

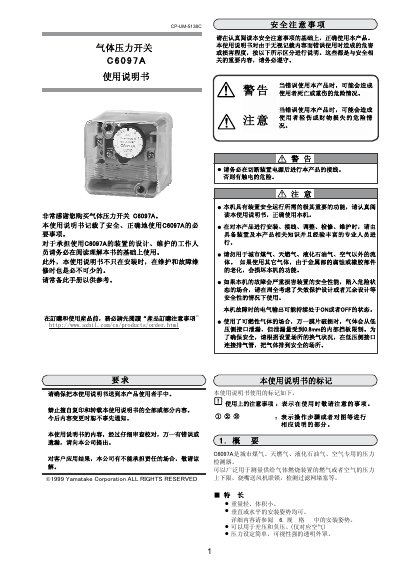

This manual explains the safe and correct use of the Yamatake C6097A gas pressure switch. It covers safety precautions, applicable gases (city gas, natural gas, LPG, air) and the basic function of the switch for pressure monitoring and control.
The document includes detailed installation guidance (vertical or horizontal mounting), wiring diagrams, adjustment procedures, regular inspection steps, and full technical specifications such as setting ranges, hysteresis, pressure limits, and electrical ratings. It also lists optional accessories like the switch action indicator lamp. This manual is written in Chinese.
| Model numbers | C6097A0110, C6097A0210, C6097A0310, C6097A0410, C6097A0510 |
|---|---|
| Control action | ON/OFF |
| Hysteresis (nominal) | 40 Pa – 800 Pa depending on model |
| Allowable pressure | 20 kPa – 150 kPa |
| Output type | SPDT contact |
| Resistive load rating | 250 Vac, 5 A |
| Inductive load rating | 250 Vac, 3 A (PF 0.6) |
| Contact resistance | ≤100 mΩ |
| Pressure element material | NBR (nitrile rubber) |
| Weight | 260 g |
Yes, it can be installed vertically or horizontally; when installed vertically, ensure the scale is oriented upward and adjust the set point if needed.
