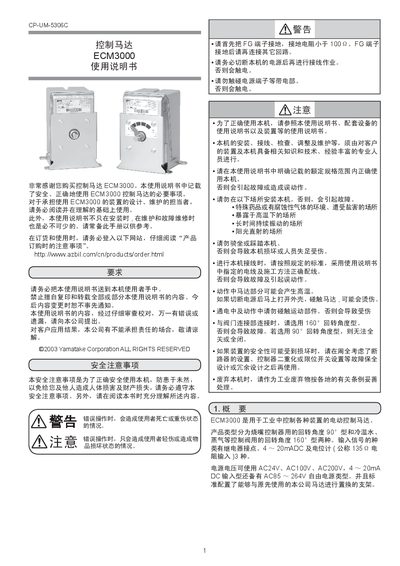

ECM3000 control motor user manual, introduces the product's function features and usage methods.
This manual explains the safe use of the ECM3000 control motor, including required safety precautions, grounding methods, and warnings to prevent injury or equipment damage. It also describes the proper installation and removal procedures, wiring diagrams, and terminal connections.
Detailed technical data such as input voltage options, angle types, torque, power ratings, and inspection intervals are listed, along with guidelines for setting duty cycles and configuring forced‑function modes. The document serves both end‑users and service technicians for operation and maintenance. This manual is written in Chinese.
| Input voltage (model D0100) | AC24V |
|---|---|
| Angle type | 90° |
| Torque | 12.5 N·m |
| Power rating | 9 VA |
| Input voltage (model G9100) | AC85‑264V |
The duty cycle should be kept below 40 %.
Connect the FG terminal to ground with a resistance less than 1000 Ω.
The ECM3000 can be powered from AC24 V, AC100 V, AC200 V, or AC85‑264 V.
