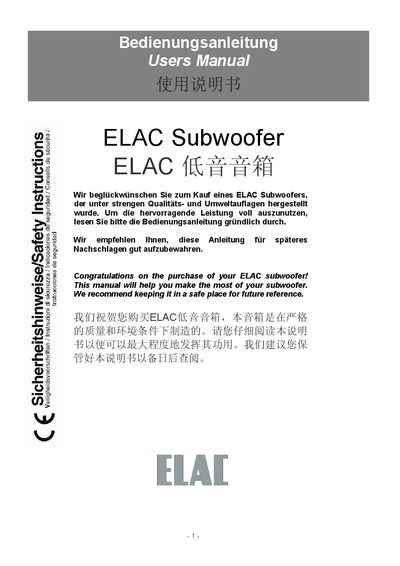

ELAC Subwoofer User Manual

About this manual

This user manual explains how to install and connect the ELAC Subwoofer to a surround or stereo system, including recommended placement, wiring options, and power‑mode settings. It also describes the function of each control on the rear panel, such as volume, crossover frequency, polarity, and mode switches.

Safety information, warranty terms, and troubleshooting tips are included, along with technical specifications and recommended adjustment ranges for optimal bass performance. This manual is written in German.

What's inside

• Quick Start Guide
• Control Devices
• Connection of a Subwoofer
• Mechanical / Acoustic Set‑up
• Level Adjustment
• Crossover Frequency
• Power Mode
• LED Indicator
• Troubleshooting
• Technical Data

Specifications

Frequently asked questions

What is the recommended minimum crossover frequency?

Set the crossover frequency to at least 63 Hz; higher values may be used for smaller speakers.

How do I completely disconnect the subwoofer from power?

First set the MODE switch to OFF, then turn the POWER switch off about one second later.
