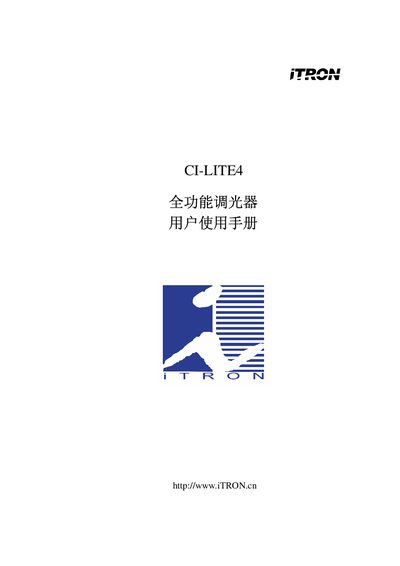

ci-lite4 full-function dimmer user manual, introduces the product's functions, characteristics, usage methods, wiring methods, etc.
The iTRON CI-LITE4 is a four‑channel network‑controlled dimmer designed for 220 V AC loads such as incandescent, low‑voltage, fluorescent and low‑temperature lamps. Each channel can deliver up to 1000 W, with a total system limit of 1920 W. The unit features a compact all‑steel enclosure with a 4‑pin network terminal and a DB9 dimming interface.
The document provides detailed wiring diagrams, address settings (default address FO), example command codes, and physical specifications including dimensions (28 cm × 15.4 cm × 12 cm), weight (5 kg), and cooling requirements. Technical support contact information is also listed. This manual is written in Chinese.
| Number of Channels | 4 |
|---|---|
| Rated Power per Channel | 1000 W |
| Maximum Total Power | 1920 W |
| Input Voltage | 220 V AC |
| Supported Lamp Types | Incandescent, low‑voltage, fluorescent, low‑temperature |
| Enclosure Dimensions (L×W×H) | 28 cm × 15.4 cm × 12 cm |
The CI-LITE4 provides four independent dimming channels.
Each channel can handle up to 1000 W of load.
The factory default address is FO.
