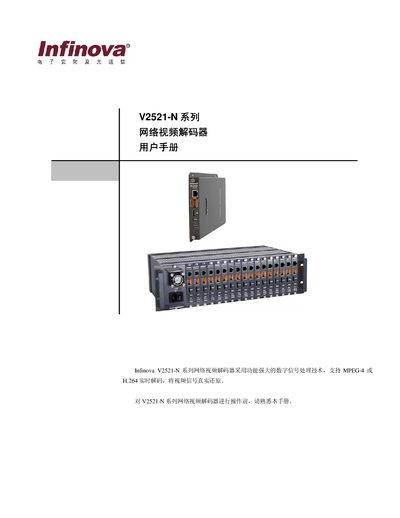

The Infinova V2521-N series network video decoder adopts powerful digital signal processing technology, supports real-time decoding of MPEG-4 or H.264, and restores video signals. Familiarize yourself with this manual before operating the V2521-N series network video decoder.
The Infinova V2521‑N series video decoder provides digital signal processing for MPEG‑4 and H.264 streams. It supports one video channel, offers multiple network interfaces (TCP/IP, HTTP, SNMP, UDP, NTP) and can be managed via a built‑in web server.
The manual details safety warnings, installation steps for both rack‑mount and chassis configurations, panel descriptions, power options (PoE, 12 VDC, 24 VAC) and full technical specifications such as video resolution, frame rates, dimensions and environmental limits. This manual is written in Chinese.
| Supported video formats | MPEG‑4, H.264 |
|---|---|
| Video output interface | BNC 1.0 Vp‑p, 75 Ω |
| PAL resolution | 720×576 (D1), 704×288 (2CTF), 352×288 (CTE) |
| NTSC resolution | 720×480 (D1), 704×240 (2CTF), 352×240 (CTE) |
| Maximum frame rate | 25 fps (PAL) / 30 fps (NTSC) |
| Power consumption (PoE) | < 6.2 W |
| Power consumption (12 VDC) | 5.2 W |
| Power consumption (24 VAC) | 5 W |
| Dimensions (H×W×D) | 158 mm × 24 mm × 233 mm |
| Weight | 0.7 kg |
| Operating temperature | -10 °C to +50 °C |
| Operating humidity | 10 %–90 % RH |
It supports MPEG‑4 and H.264 video streams.
The decoder can be powered by PoE, 12 VDC or 24 VAC.
It operates from –10 °C to +50 °C and 10 %–90 % relative humidity.
