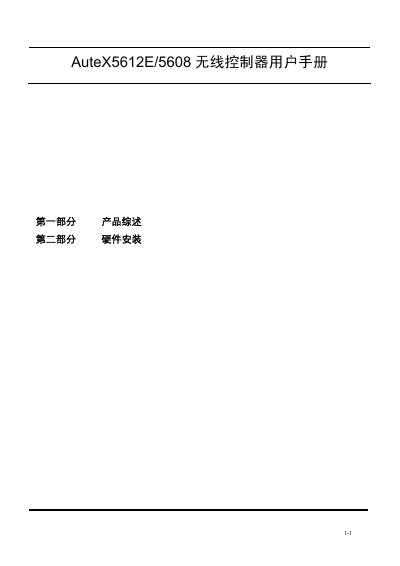

AuteX5612E/5608 wireless controller user manual, introduces the product's features and hardware installation methods
The Autelan AuteX5612E/5608 wireless controller is a high‑performance, multi‑core, 10‑Gbps class device designed for enterprise WLAN deployments. This manual provides a complete product overview, including specifications, safety features, and environmental requirements.
The second part of the manual details step‑by‑step hardware installation, power connection, SFP/XFP module installation, and system startup procedures. It also covers software upgrade methods via FTP/HTTP and basic configuration using a terminal program. This manual is written in Chinese.
| Dimensions | 440 mm × 300 mm × 44.5 mm (L×W×H) |
|---|---|
| Input Voltage | 100‑240 VAC |
| Maximum Power Consumption | 60 W |
| Operating Temperature | 0 °C – 40 °C |
| Operating Humidity | 10 % – 90 % non‑condensing |
The controller operates on an input voltage of 100‑240 VAC.
The AuteX5608 model supports up to 128 APs.
A 4 Hz fast flash means the system is initializing; a 1 Hz slow flash indicates normal operation after initialization.
Firmware can be upgraded via FTP or HTTP by connecting the controller to a server and using the appropriate download commands.
