This manual introduces the features and characteristics of the 8900 chassis, including safety terms and symbols, terms in this manual, terms on the product, and symbols on the product.

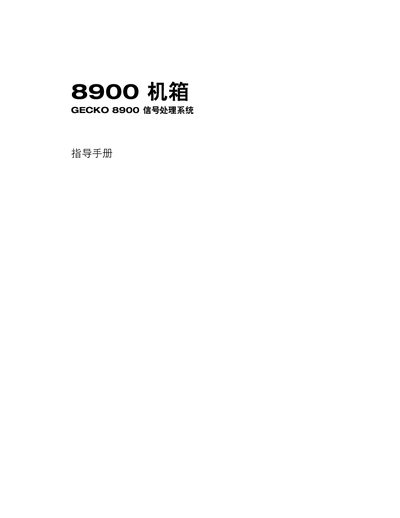

The Gecko 8900 chassis service manual provides detailed instructions for installing, powering, and maintaining the video and audio chassis used with Grass Valley 8900 modules. It includes safety warnings, wiring diagrams, and guidance on chassis upgrades and cooling.
The document also lists technical specifications such as input voltage range, power consumption, mechanical dimensions, and environmental limits, plus an appendix with legacy chassis information and an index for quick reference. This manual is written in Chinese.
| Input voltage range | 100 V to 240 VAC, 47‑63 Hz |
|---|---|
| Maximum input current | 1.5 A |
| Operating temperature range | 0 °C to 45 °C |
| Mechanical height | 2 RU, 3.5 in (89 mm) |
| Weight (TX chassis, 1 power supply) | 18.55 lbs (8.4 kg) |
| Maximum power dissipation (TX chassis) | 30 W |
The chassis operates on 100 V to 240 VAC with a frequency of 47 – 63 Hz.
The chassis is 2 RU high (3.5 in / 89 mm), 19 in (483 mm) wide, and 13.25 in (337 mm) deep.
