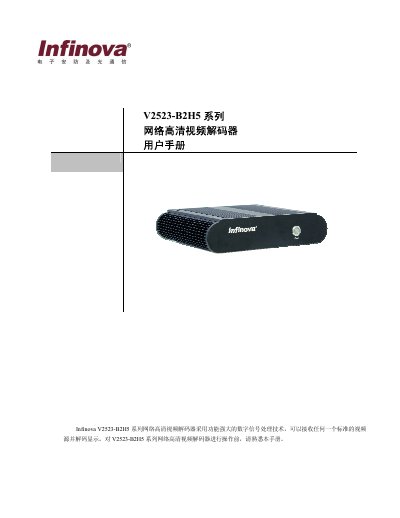

V2523-B2H5 series network HD video decoders adopt powerful digital signal processing technology, which can decode HD or SD video sources and restore the video signals in real time.
This manual describes the Infinova V2523-B2H5 network high‑definition video decoder, a device that decodes MPEG‑4/H.264 streams and outputs video via HDMI, DVI, VGA and TV‑OUT/AV connectors. It is intended for use in surveillance, transportation, power, education and other industrial applications.
The document includes sections on system overview, installation and wiring, video browsing, cable selection, surge and lightning protection, as well as safety warnings and regulatory notices. It also provides detailed product specifications, power requirements, environmental limits and troubleshooting guidance. This manual is written in Chinese.
| Video decoding format | MPEG‑4/H.264 |
|---|---|
| Video output interfaces | HDMI, DVI, VGA, TV‑OUT/AV |
| Supported video resolutions | 1080P, 960P, 720P, D1, 2CIF, CIF |
| Power supply voltage | 12 VDC |
| Dimensions (L×W×H) | 245 mm × 195 mm × 55 mm |
| Net weight | 2.4 kg |
| Operating humidity | 5 % to 90 % RH |
It provides four video output interfaces: HDMI, DVI, VGA and TV‑OUT/AV.
The decoder operates from a 12 VDC power supply.
Install the decoder where the temperature is between 0 °C and +60 °C and humidity does not exceed 90 % RH.
