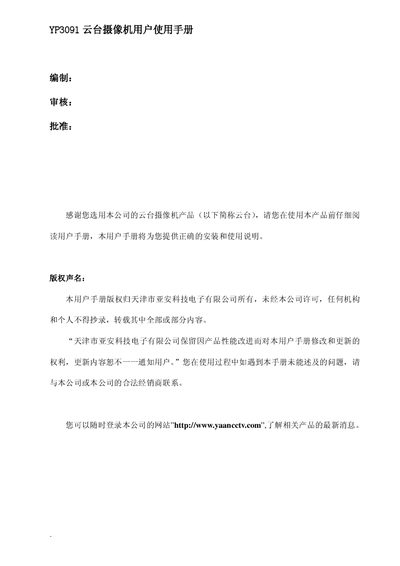

YP3091 PTZ camera user manual, introduces the PTZ camera product features, ID settings, function rotary switch settings, technical indicators, PTZ camera installation, pre-installation confirmation, structure description, installation, remote control operation instructions, common faults and repairs.
This manual introduces the YP3091 PTZ camera, its key features such as 50 preset positions, multiple control protocols (YAAN, industry, Pelco‑D, Pelco‑P), and infrared remote operation. It explains how to set the device ID and communication parameters using DIP switches.
Installation procedures cover safety precautions, required accessories, mounting guidelines, and wiring connections. The remote‑control usage section details address selection, protocol and baud‑rate configuration, preset handling, and automatic patrol functions. A troubleshooting chapter lists common faults and recommended repairs. This manual is written in Chinese.
| Power Supply Voltage | DC12V |
|---|---|
| Installation Environment | Indoor (horizontal tabletop) |
| Preset Positions | 50 |
| Material | Steel plate body, ABS cover |
| Dimensions | 156 × 134 mm |
| Weight | 2.1 kg |
| Supported Protocols | YAAN, industry, Pelco‑D, Pelco‑P |
| Special Feature | Infrared remote control |
Use the address DIP switch (S1) at the bottom of the unit to set the binary code for the desired ID number.
Read all safety warnings, disconnect power before cleaning, use only recommended accessories, avoid liquid exposure, and ensure the mounting surface is secure.
Check that the power cable is correctly connected, verify the power supply meets the DC12V requirement, and replace the power supply if it is damaged.
