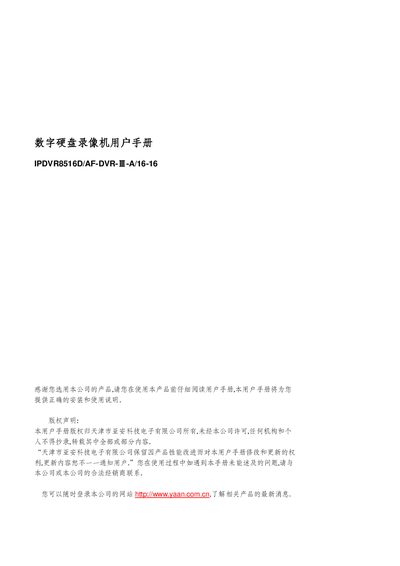

This manual introduces the features, functions, installation, and operation of the IPDVR8516D/AF-DVR-Ⅲ-A/16-16 digital hard disk recorder. It is an essential manual for users to use this product.
This user manual covers the safety precautions, product overview, and detailed installation steps for the YAAN IPDVR8516D/AF-DVR-III-A 16-16 digital hard‑disk recorder. It explains the device’s hardware connections, power requirements, and recommended operating environment.
The guide also describes basic operation procedures, parameter configuration, network setup, alarm handling, and common troubleshooting. Appendices provide wiring diagrams, cable‑making instructions, and a fault‑diagnosis table. This manual is written in Chinese.
| Power Supply | AC220V ±10%, 50 Hz |
|---|---|
| Power Consumption | ≤55 W (without hard disk) |
| Operating System | Embedded Linux |
| Video Input Channels | 16 composite video BNC inputs |
| Maximum Video Resolution | 1920 × 1080 (VGA) |
| Storage Capacity | 8 SATA bays, each up to 2 TB |
| Network Interface | Gigabit Ethernet (auto‑MDI/MDIX) |
| Alarm Inputs | 16 relay inputs |
| Alarm Outputs | 4 relay outputs |
It requires an AC220 V ±10 % supply at 50 Hz.
The recorder provides 16 composite video input channels via BNC connectors.
