Ky universal series of automobile special pressure transmitters products, using American technology front end special pin design, special quick connector is especially suitable for automobile each system's fast installation and pressure measurement, has the good anti-shock performance and stability. It is mainly used in standard automobile hydraulic, pneumatic, locomotive braking, engine, air compressor, refrigeration system and brake system.
The KY General Series automotive pressure transmitter is designed for vehicle hydraulic, pneumatic, brake, engine, air‑compressor, refrigeration and brake systems. It uses advanced U.S. technology, offering high stability, vibration resistance and high sensitivity in a compact package.

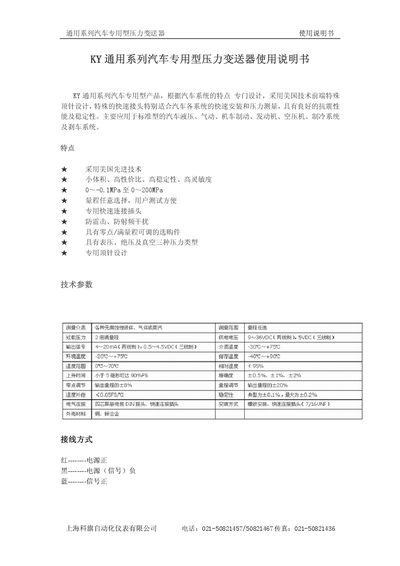

Key features include a selectable pressure range, a special quick‑connect plug, protection against lightning and RF interference, and three pressure measurement types (gauge, absolute, vacuum). The document describes wiring connections (red = power +, black = power –/signal –, blue = signal +), technical parameters and installation guidelines. This manual is written in Chinese.
| Pressure range | -0.1 MPa to 200 MPa |
|---|---|
| Pressure measurement types | Gauge, absolute and vacuum |
| Wiring colors | Red = positive power, Black = negative power (signal), Blue = positive signal |
It supports a range from -0.1 MPa up to 200 MPa.
Red is the positive power lead, black is the negative power (signal) lead, and blue is the positive signal lead.
The device can measure gauge pressure, absolute pressure, and vacuum.
