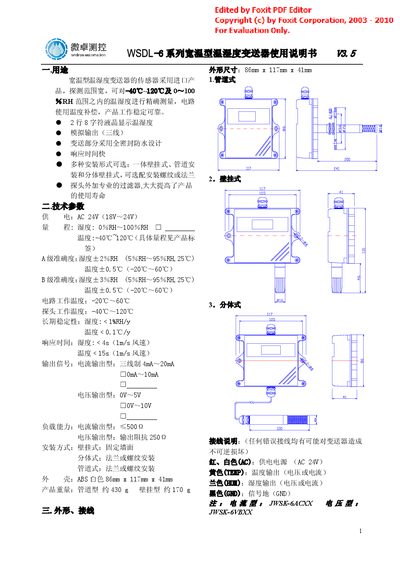

1-6 series wide temperature type temperature and humidity transmitter user manual, detailed introduction of product uses, technical parameters, appearance, wiring, installation and use methods, etc.
The WSDL-6 series is a wide‑temperature humidity transmitter that measures temperature from –40 °C to 120 °C and relative humidity from 0 % to 100 % RH. It features a sealed waterproof design, a 2‑line LCD display, and both current (4‑20 mA) and voltage output options.
The manual covers installation methods (wall‑mount, pipe‑mount, and split‑type), wiring colour codes, operation steps, safety precautions, routine maintenance, storage guidelines, and troubleshooting procedures. It also provides technical specifications and calibration recommendations. This manual is written in Chinese.
| Power supply | AC 24 V (18 V‑24 V) |
|---|---|
| Humidity measurement range | 0 % – 100 % RH |
| Temperature measurement range | –40 °C – 120 °C |
| Class A humidity accuracy | ±2 % RH (5 %–95 % RH, 25 °C) |
| Class A temperature accuracy | ±0.5 °C (–20 °C–60 °C) |
| Circuit operating temperature | –20 °C – 60 °C |
| Probe operating temperature | –40 °C – 120 °C |
| Long‑term humidity stability | < 1 % RH/yr |
| Long‑term temperature stability | < 0.1 °C/yr |
| Response time (temperature) | < 4 s (1 m/s air flow) |
| Response time (humidity) | < 15 s (1 m/s air flow) |
| Current output | 4‑20 mA (0‑10 mA optional) |
| Voltage output impedance | 250 Ω |
| Physical dimensions | 86 mm × 117 mm × 41 mm |
| Weight (wall‑mount) | ≈ 170 g |
| Weight (pipe‑mount) | ≈ 430 g |
The transmitter works from –40 °C to 120 °C.
Use the two mounting holes on each side and fix the unit to the wall with the supplied expansion screws.
Red/white (AC 24 V), Yellow (temperature output), Blue (humidity output), Black (ground).
It is recommended to calibrate the transmitter once a year to maintain measurement accuracy.
