BZCT8-61 type meter is designed for electrical systems that require accurate metering/counting and fast operation. This meter has strong anti-interference ability, high counting accuracy, high reliability of set values, easy to use, and clear reading. It can be widely used in papermaking, printing, textile, rubber, plastic and other industries for length, quantity, flow and other displays and controls.
The BZCT8-61 Counter is designed for accurate counting and length measurement in industries such as paper, printing, textile, rubber, and plastic. It offers strong anti‑interference capability, high counting precision, and clear LED display.

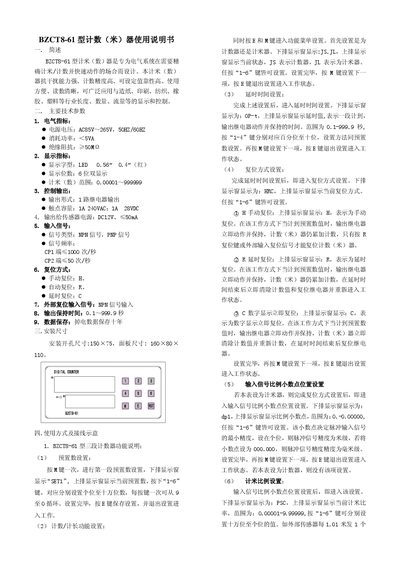

The manual explains how to configure preset values, select counting or metering mode, adjust delay times, set reset methods, and configure input signal scaling. Detailed wiring diagrams and safety requirements are also provided to ensure reliable installation and operation. This manual is written in Chinese.
| Power supply voltage | AC85‑265V, 50/60 Hz |
|---|---|
| Power consumption | < 5 W |
| Insulation resistance | > 50 MΩ |
| Display type | LED |
| Display digits | 6‑digit dual display |
| Counting range | 0.00001‑999999 |
| Output type | 1‑relay output |
| Contact rating | 1 A 240 VAC, 1 A 28 VDC |
| Sensor power output | DC 12 V, ~50 mA |
| Input signal types | NPN, PNP |
| Input signal frequency (CP1) | up to 1000 pulses/s |
| Input signal frequency (CP2) | up to 50 pulses/s |
| Output hold time | 0.1‑999.9 s |
| Data retention after power loss | 10 years |
| Installation opening size | 150 × 75 mm |
| Panel size | 160 × 80 × 110 mm |
The output hold time can be set from 0.1 seconds up to 999.9 seconds.
