BZCT7-62 type meter is a high-performance, high-precision, high-reliability meter. It is widely used in papermaking, printing, textile, rubber, plastic and other industries for length, quantity, flow and other display and control.
The BZCT7-62 counter is designed for precise length, quantity, and flow measurement in industries such as paper, printing, textile, rubber, and plastic. It offers strong anti‑interference capability, high counting accuracy, clear LED display, and configurable output relays.

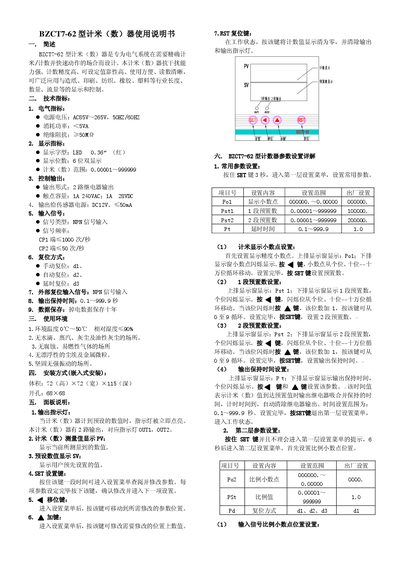

The manual describes electrical parameters, environmental limits, mounting dimensions, panel functions, parameter settings, and detailed wiring instructions, including signal input types, relay output contacts, and external reset connections. This manual is written in Chinese.
| Power consumption | <5 W |
|---|---|
| Insulation resistance | >50 MΩ |
| Display type | LED red |
| Display digits | 6‑digit dual display |
| Relay outputs | 2 relays, 1 A 240 W AC, 1 A 28 V DC |
| Sensor power output | DC12 V, 50 mA |
| Input signal type | NPN |
| Input frequency CP1 | up to 1000 pulses/s |
| Input frequency CP2 | up to 50 pulses/s |
| Reset methods | manual, automatic, delayed |
| Data retention after power loss | 10 years |
| Maximum humidity | ≤90 % RH |
| Dimensions (W×H×D) | 72 mm × 72 mm × 115 mm |
The device provides two relay outputs with contact capacities of 1 A 240 W AC and 1 A 28 V DC.
Manual reset, automatic reset, and delayed reset are supported.
