AT2020 USB cardioid condenser microphone is a side-address cardioid condenser with USB digital output, which is compatible with Windows and Mac. It is ideal for podcasting, home studio recording, field recording and voiceover use. Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response. Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source. Low self-noise - perfectly suited for sophisticated digital recording equipment. USB powered; connects directly to computer’s USB input. Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone. Tripod desk stand with folding legs offers secure and easily portable tabletop base.

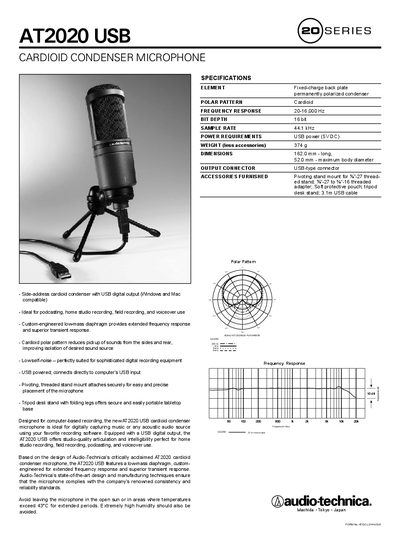

The AT2020 USB is a side‑address cardioid condenser microphone with a USB digital output, designed for podcasting, home‑studio recording, field recording, and voice‑over work. It offers a low‑mass diaphragm for extended frequency response and superior transient response, and it connects directly to a computer via USB power (5 V DC).\n\nThe manual provides an overview of the microphone’s features, handling and care instructions, a full specifications table, and a list of supplied accessories such as a pivoting stand mount, threaded adapters, protective pouch, tripod desk stand, and a 3.1 m USB cable.
| Element | Fixed-charge back plate permanently polarized condenser |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 20‑16,000 Hz |
| Bit depth | 16 bit |
| Sample rate | 44.1 kHz |
| Power requirements | USB power (5 V DC) |
| Weight | 374 g |
| Dimensions | 162.0 mm length × 52.0 mm diameter |
| Output connector | USB‑type connector |
It is powered via USB, requiring 5 V DC from the computer’s USB port.
The microphone covers a frequency range of 20 Hz to 16 kHz.
It uses a cardioid polar pattern to reduce side and rear pickup.
