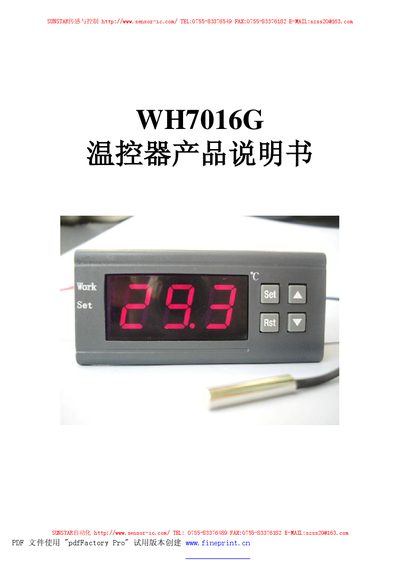

WH7016G temperature controller product manual, mainly introduces the opening size, wiring diagram, electrical performance, key instructions, function description, etc. of the temperature controller.
This manual describes the WH7016G thermostat, including its wiring connections, electrical performance, and operation. It details the functions of the RST and SET keys, menu codes, and how to configure temperature limits, hysteresis, and alarm thresholds.
Safety notes and fault indications are also provided, emphasizing proper wiring, load limits, and precautions to avoid damage or fire. The document includes tables of menu codes and their adjustable ranges for temperature control and protection features. This manual is written in Chinese.
| Temperature measurement range | -50℃～110℃ |
|---|---|
| Temperature control range | -50℃～110℃ |
| Temperature measurement error | ±0.5℃ |
| Sensor type | NTC (10K/3435) |
| Working voltage | AC220V |
| Maximum working current | 200 mA |
| Relay contact current | AC 5 A/220 V |
| Operating temperature | 0℃～50℃ |
| Storage temperature | -10℃～60℃ |
Press and hold the RST key for 3 seconds while the unit is powered on.
Press the SET key once to enter temperature setting mode, then use the ▲ or ▼ keys to adjust the temperature.
The display shows ‘---’ and an alarm sound is emitted.
When temperature exceeds the high‑temperature alarm setting, the alarm relay activates, the unit sounds an alarm, and the display alternates ‘H’ with the current temperature.
