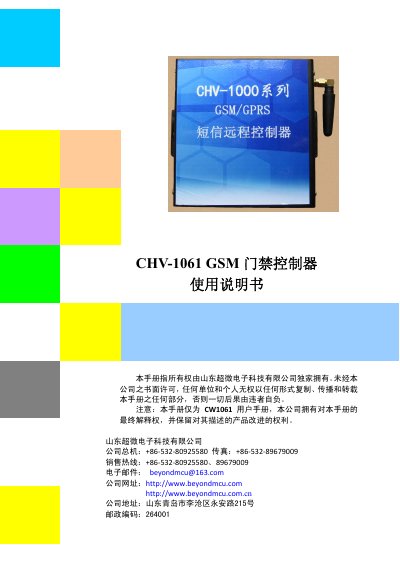

This is the user manual for a door access control device. It can control 220V/30A appliances, and can store at least 1000 user phone numbers, and at most 5 administrator numbers. It can open the door access system by dialing a phone call.
The CHV-1061 GSM access controller is a GSM‑based door‑access device that can control up to three independent loads, such as electric locks, with a maximum output of 220 VAC/30 A. It supports up to five administrator phone numbers and stores up to 1000 groups of authorized numbers. The hardware uses an imported Siemens module for strong isolation between power and control circuits.
Installation involves inserting a SIM card, powering the unit, and holding the setting button for about two minutes until the relay clicks. Administrator numbers are set via SMS (e.g., “设置主人号码 001”). After configuration, devices can be controlled by sending SMS commands like “控制电器 1 开” or by calling the controller. The manual also lists dimensions, power requirements, and environmental limits. This manual is written in Chinese.
| Dimensions (L×W×H) | 110 mm × 110 mm × 35 mm |
|---|---|
| Working Voltage | 9 VAC, 12 VDC |
| Operating Temperature | -20 °C to 60 °C |
| Operating Humidity | ≤ 90 % |
| Maximum Control Power | 10 A @ 240 VAC (customizable) |
Send the SMS “查询工作状态” and the controller will reply with the current operating status of the connected devices.
