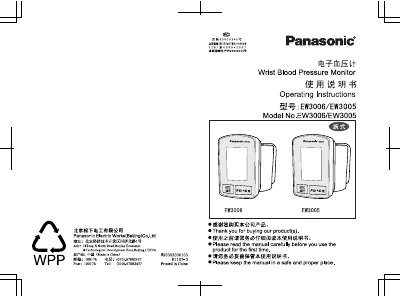

The EW3006/EW3005 is a wrist‑type electronic blood pressure monitor designed for home use. It measures systolic and diastolic pressure as well as pulse rate, and stores measurement data for later review.
The manual explains safety precautions, battery installation, cuff wrapping, correct measurement technique, data memory functions, troubleshooting tips, and technical specifications such as power requirements, pressure range, and device dimensions. This manual is written in Chinese.
| Power | DC 3 V, AAA‑size alkaline batteries ×2 |
|---|---|
| Display mode | Digital LCD |
| Measurement mode | Oscillometric system |
| Pressure range | 0 kPa – 37.3 kPa (0 – 280 mmHg) |
| Pulse rate range | 30 – 160 bpm |
| Accuracy | ±0.8 kPa (±6 mmHg) within 5‑40 °C |
| Weight | ≈ 104 g (excluding batteries) |
| Dimensions (main part) | ≈ 78 mm × 54 mm × 26 mm |
| Measurable wrist circumference | 12.5 cm – 22.0 cm |
The EW3006 can store up to 90 measurements, while the EW3005 can store up to 21 measurements.
It uses two AAA‑size alkaline batteries.
The “E” indicator signals excessive movement of the wrist or arm; re‑measure after returning to a stable position.
