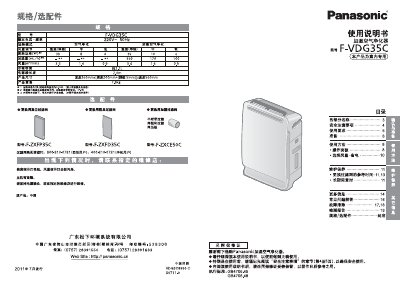

This manual provides safety precautions, specifications, installation steps, operating instructions, and maintenance procedures for the Panasonic F-VDG35C humidifying air purifier. It includes detailed information on power settings, airflow modes, humidification performance, and how to replace filters and the water tank.
The document also contains troubleshooting tips, a FAQ section addressing common user questions, and contact information for service and warranty support in China. This manual is written in Chinese.
| Rated voltage / frequency | 220V~ 50Hz |
|---|---|
| Power consumption (high speed) | 39W |
| Power consumption (low speed) | 4W |
| Humidification amount (high speed) | 350 mL/h |
| Air flow (high speed) | 3.5 m³/min |
| Air flow (low speed) | 0.9 m³/min |
| Water tank capacity | ≈2.1 L |
| Dimensions (W×D×H) | 360 mm × 200 mm × 560 mm |
| Weight | 7.8 kg |
