Instruction manual of the hood, including safety instructions, installation, cleaning and maintenance

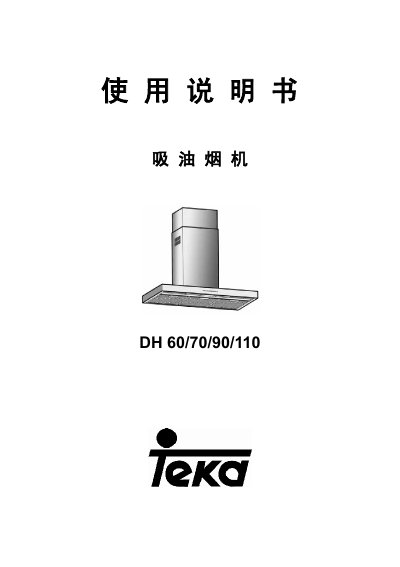

This manual describes the Teka DH 60/70/90/110 range hood, its controls, metal filter, lighting, and optional vertical chimney cover. It includes safety guidelines, recommended installation clearances, and operating steps to ensure optimal performance and fire safety.
Detailed sections cover cleaning and maintenance of the metal filter and body, replacement of the 40 W lamp, troubleshooting common issues, dimensions and specifications, required accessories, and step‑by‑step installation instructions, including exhaust pipe limits and optional active carbon filter usage. This manual is written in Chinese.
| Lamp Power | 40W (E‑14) |
|---|---|
| Minimum distance to electric stove | 50 cm |
| Minimum distance to gas stove | 65 cm |
| Maximum external exhaust pipe length | 4 m |
| Maximum 90° bends in exhaust pipe | 2 |
| Minimum exhaust pipe diameter | 120 mm |
The external exhaust pipe should not be longer than 4 meters.
A 40 W lamp with an E‑14 base can be used as a replacement.
No, the active carbon filter cannot be cleaned or regenerated; it must be replaced when its service life ends.
