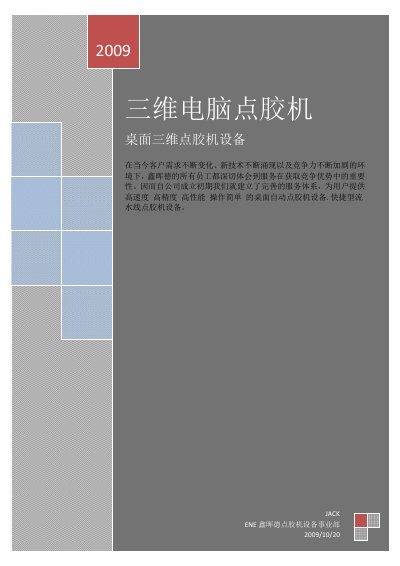

This document introduces the three-dimensional computer dispensing machine and desktop three-dimensional dispensing machine equipment of Xin Hui De company, including features such as high speed, high precision, high performance, and easy operation.
This manual introduces ENE’s high‑performance three‑dimensional PC dispensing equipment, covering desktop, automatic and line‑type models used in electronics, optics, and mechanical industries. It describes the various dispenser types, applicable fluids, and typical application fields such as PCB coating, LED packaging, and component assembly.
The guide details software installation, program editing, and operation procedures, including needle selection, pressure adjustment, IO configuration, and maintenance. It also provides fault‑diagnosis steps and contact information for technical support. This manual is written in Chinese.
| Travel range | 200 mm – 500 mm |
|---|---|
| Standard working pressure | 5 kg/cm² |
| IO ports | 18 |
| Program storage capacity | Up to 90 000 G‑code commands |
| Minimum/maximum dispense time | 0.001 s – 10 s |
Choose the needle based on the size of the drop, pressure, and dispensing time: small needle for small drops and low pressure, large needle for larger drops and higher pressure, and special needles for viscous or UV‑curable fluids.
The dispenser is set to a standard working pressure of 5 kg/cm², which can be adjusted if needed.
The machine provides 18 IO ports for controlling the dispensing head and related functions.
