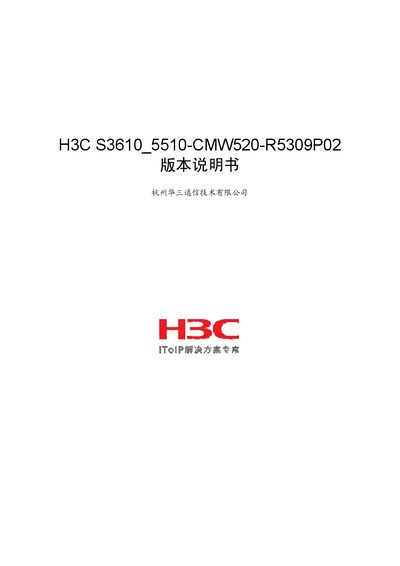

This document is a manual for H3C S3610_5510-CMW520-R5309P02 version, which provides detailed information about version details, version changes, known issues and workarounds, problem resolution list, supporting materials, and version upgrade instructions.
This manual provides detailed information about the R5309P02 software release for the H3C S3610 and S5510 series switches. It includes version numbers, hardware and software feature descriptions, known issues, and mitigation measures.
The document also contains step‑by‑step instructions for upgrading the switch firmware via command‑line, Xmodem, TFTP and FTP, as well as hardware specifications such as dimensions, weight, memory and flash requirements. This manual is written in Chinese.
| Dimensions (S5510) | 440 x 43.6 x 360 mm |
|---|---|
| Weight (S3610‑52P) | 3.8 kg |
| Minimum Memory | 128 MB |
| Minimum Flash | 32 MB |
| Management Port | 1 console port |
| 10/100 M Ethernet Ports (S3610‑28P) | 24 ports |
Select option 1 in the boot menu, set the TFTP parameters (file name, switch IP, server IP), confirm the download, and the system will load and write the firmware to flash.
Use the `display version` command in any view to display the Comware software and BootRom version numbers.
No. Devices with a factory software version of R5303 cannot be downgraded to earlier versions; the system will reject the downgrade.
The switches require at least 128 MB of memory and 32 MB of flash storage.
