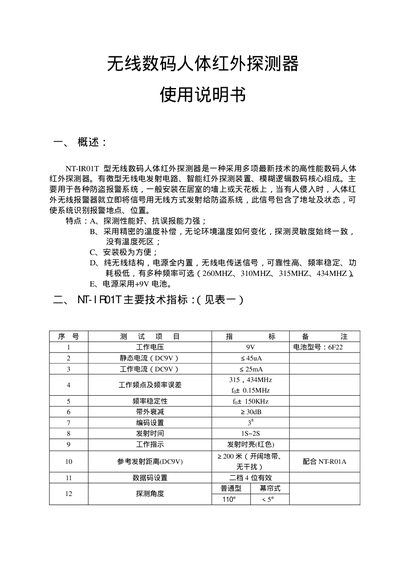

This instruction manual mainly introduces the features, installation, and usage precautions of the NT-IR01T type wireless digital human body infrared detector.
The NTIRO1T wireless digital body infrared detector is a high‑performance infrared sensor designed for anti‑theft alarm systems. It features a built‑in 9 V battery, multiple selectable RF frequencies, and a fuzzy‑logic digital core for reliable detection.
The manual explains how to select an appropriate mounting location, install the unit, power it on, configure address and zone codes, and maintain safe operation. It also lists the key technical parameters such as voltage, current consumption, frequency stability, and transmission range. This manual is written in Chinese.
| Working voltage | 9 V (battery type 6F22) |
|---|---|
| Static current (DC9V) | < 45 µA |
| Working current (DC9V) | < 25 mA |
| Selectable RF frequencies | 260 MHz, 310 MHz, 315 MHz, 434 MHz |
| Frequency error | ±0.15 MHz |
| Frequency stability | ±150 kHz |
| Out‑of‑band attenuation | >30 dB |
| Transmission time | 1 s ~ 2 s |
| Maximum transmission distance | >200 m (open area) |
The installation height is recommended to be around 2.1 m, adjusted according to the detector’s optical characteristics and the area to be protected.
It is powered by a +9 V battery, model 6F22.
Flip the switch to the “ON” position to enter normal working mode.
Avoid placing heat sources, light sources, or windows that shine directly on the detector.
