This document describes the operation method and precautions of the electric screwdriver controller and provides the product's technical parameters

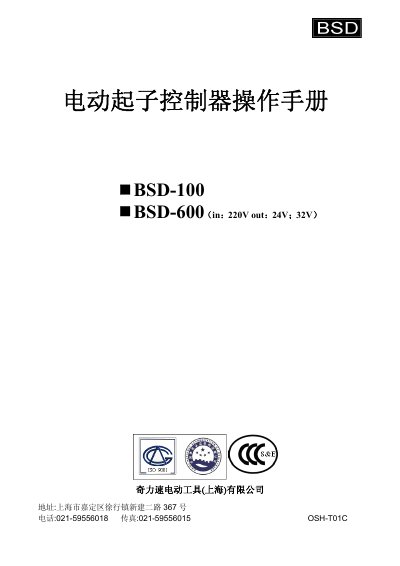

This manual explains safe operation of the BSD-100 and BSD-600 electric screwdriver controllers, covering required input voltage, grounding procedures, and handling precautions. It emphasizes using the specified voltage, proper grounding with the yellow‑green wire, and avoiding exposure to dust, metal chips, or high‑temperature environments.
Technical details such as input voltage, output voltage, current ratings, dimensions, and weight are listed, along with a complete parts list and part numbers for both controller models. The document also includes wiring diagrams and instructions for connecting the controller to compatible electric screwdrivers. This manual is written in Chinese.
| Input voltage | 220V~ 50Hz |
|---|---|
| Output voltage (BSD-100) | DC 32V |
| Output current (BSD-100) | 3A |
| Dimensions | 130 × 65 × 90 mm |
| Weight | 1.5 kg |
The controller must be powered with 220 V, 50 Hz AC as specified in the manual.
Connect the yellow‑green wire to a grounded outlet; this wire provides safety grounding and ESD discharge.
The BSD-100 is rated for a maximum output current of 3 A.
