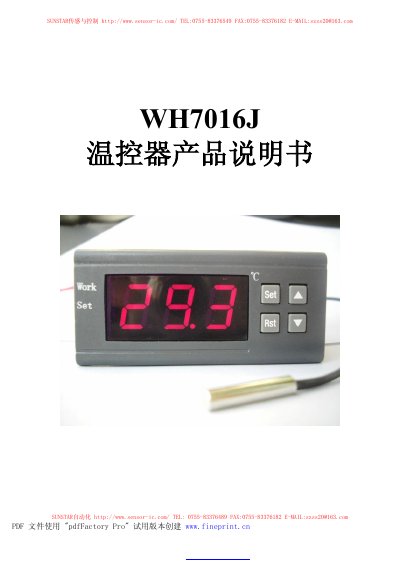

WH7016J temperature controller product manual, which introduces the appearance size, wiring diagram, electrical performance, key description, function description and other contents in detail.
This manual describes the WH7016J thermostat’s wiring connections, electrical performance, and button functions. It includes detailed wiring diagrams for power, sensor, and relay connections, as well as specifications such as temperature range, accuracy, and relay contact ratings.
The document also explains how to operate the thermostat, set temperature, adjust hysteresis, calibrate temperature, and configure alarms and protection features. Safety precautions and fault indications are provided to ensure reliable and safe use. This manual is written in Chinese.
| Temperature measurement range | -30 ℃~200 ℃ |
|---|---|
| Temperature control range | -30 ℃~200 ℃ |
| Temperature measurement error | ±0.5 ℃ |
| Sensor type | NTC (100K/3977) |
| Operating voltage | AC 220 V |
| Maximum working current | 200 mA |
| Relay contact current | AC 5 A/220 V |
| Operating temperature | 0 ℃~50 ℃ |
| Storage temperature | -10 ℃~60 ℃ |
Press the RST key to turn on; hold RST for 3 seconds to turn off.
Press SET to enter temperature setting, use the ▲ or ▼ keys to adjust, then press SET again to exit.
Hold SET for more than 3 seconds, select the F4 menu code, then use ▲/▼ to adjust the calibration value.
The alarm relay activates, the unit sounds an alarm, and the display alternates H and the current temperature; press any key to stop the alarm.
