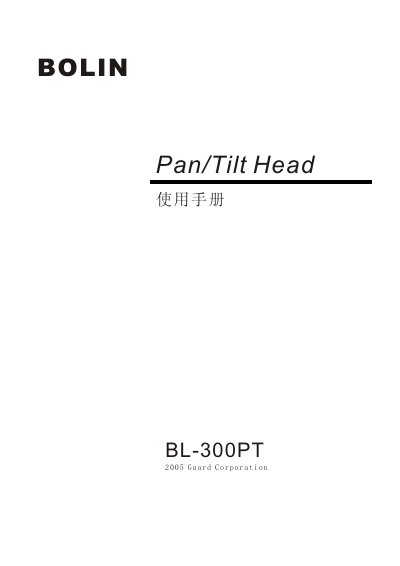

This is a user manual for a product of a company. It mainly introduces the features and usage of the product.
The manual provides step‑by‑step instructions for assembling, installing and operating the Bolin BL‑300PT Pan/Tilt Head. It includes safety warnings, wiring diagrams, dip‑switch settings and guidance for mounting the camera and lens.
Detailed specifications such as rotation ranges, speed limits, load capacity and environmental limits are listed, along with procedures for replacing consumables and connecting the device to a monitor or control system. This manual is written in Chinese.
| Vertical rotation range | -95° to +95° |
|---|---|
| Horizontal rotation range | -180° to +180° |
| Maximum load capacity | 4 kg |
| Noise level | < NC30 |
| Operating temperature range | -10 °C to 45 °C |
| Maximum humidity | ≤ 90 % |
| Minimum distance to monitor | ≥ 1 m |
The BL-300PT Pan/Tilt Head can support a maximum load of 4 kg.
The distance between the pan/tilt head and the monitor should be greater than 1 meter.
Set dip‑switch S1 N O.2 to OFF for hanging installation, to ON for upright installation, and adjust the other positions for soft landing or precise landing as described in the manual.
The head rotates vertically from –95° to +95° and horizontally from –180° to +180°.
