RFM151 is a high-performance RF signal level meter designed for cable TV applications. It can not only measure signal levels, but also perform necessary measurements such as carrier-to-noise ratio, signal-to-noise ratio, spectrum display, and FM frequency deviation. The product also features automatic measurement programs and storage of measurement results.
The RFM151 SignalScout is a high‑performance RF signal level meter designed for cable‑TV applications. It supports level measurement, carrier‑to‑noise ratio, signal‑to‑noise ratio, spectrum display and FM‑deviation measurement across NTSC, PAL and SECAM systems.

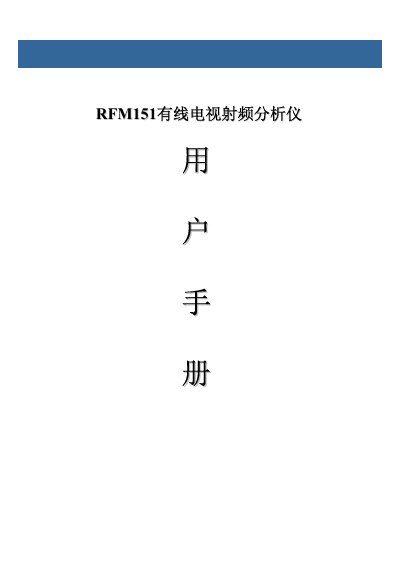

The manual provides detailed instructions on using the instrument’s measurement modes, configuring channel tables, connecting via RS‑232, storing results, and performing maintenance such as cleaning and firmware updates. This manual is written in Chinese.
| Internal storage | 32 KB (standard) – upgradeable to 160 KB |
|---|---|
| Upgrade option | Option 01 adds NVRAM to reach 160 KB |
| RS‑232 connector | 9‑pin D‑sub, pinout as listed in the manual |
| RS‑232 baud rates | 300, 1200, 2400, 4800, 9600 |
| Frequency resolution (spectrum mode) | 30 kHz or 300 kHz |
| Power supply | 120 V AC input |
| Enclosure | Sealed, waterproof, rugged construction |
Press the POWER key on the front panel; the unit beeps briefly and the software version appears on the screen.
Press F1 to select BACKLIGHT, then rotate the knob left or right to turn the backlight ON or OFF.
The 9‑pin connector uses the following signals: 1 – No connection, 2 – RX, 3 – TX, 4 – DTR, 5 – GND, 6 – DSR, 7 – RTS, 8 – CTS, 9 – No connection.
It includes a standard 32 KB fixed memory, which can be expanded to 160 KB with Option 01.
